6DOF Robot Mechanical Arm Clamp Claw Kit DOF Manipulator Industrial Robot Parts

• 6DOF manipulator is widely used in university education and IDY production.
• Its power system consists of 6 servo motors, which can realize the demonstration of front and rear gripping, up and down and left and right of the robot.
• The brackets are made of 2mm thick aluminum plate, which effectively improves the stability of the robot itself.
• Imported bowl bearings are used at the steering joints, which not only makes the steering more flexible, but also allows the steering gear steering to be in the same center.
• The chassis is in the form of a disk, which makes the manipulator turn left and right more flexible and smoother.

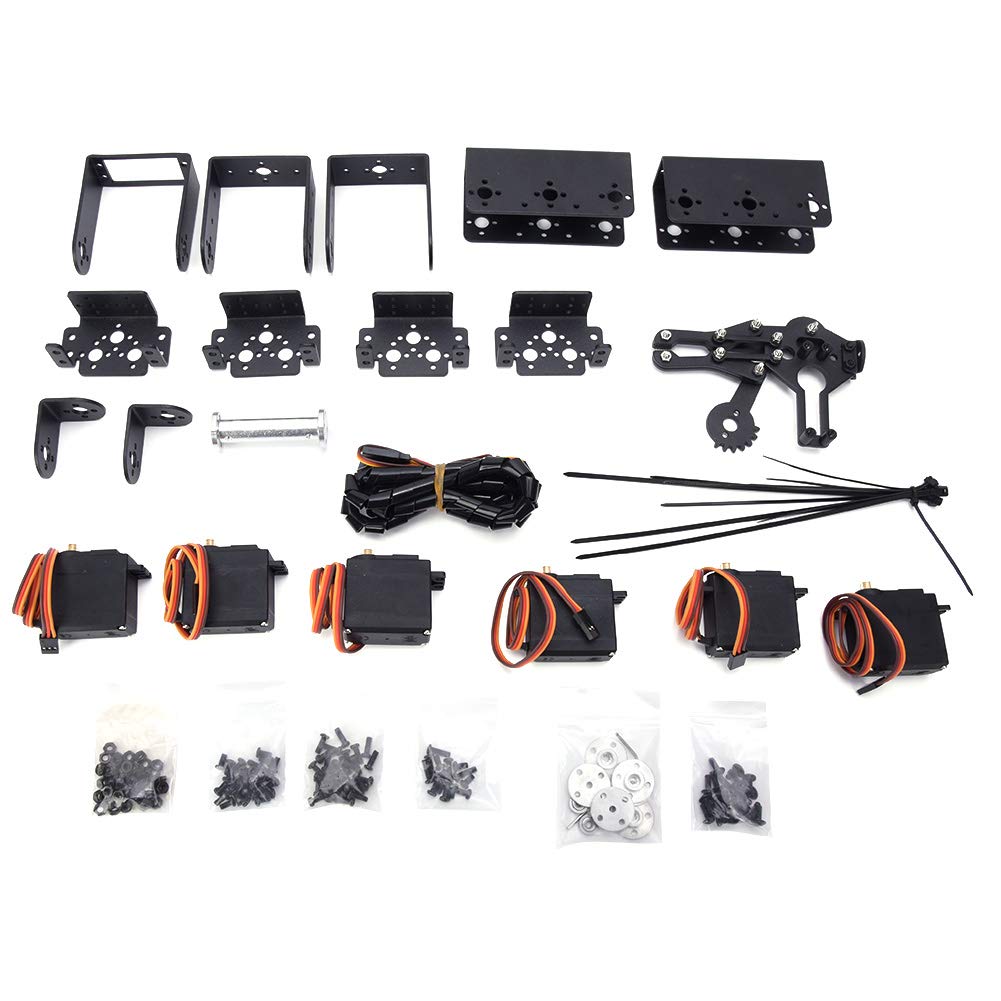

Specification: Item Type Mechanical Arm Colour Black Steering box analog model Operating voltage 4.8V-7.2V No-load current 100 mA Torsion machine 10 kg.cm Limit angle 180° Wire length 30 cm Gear Material Metal Gear Time Out 5uS Steering box performance Package List: 6 x MG996 Analog Steering Mechanism 1 x Cable Tie 5 packs screw nut fittings 3 x extension cord. 1 x Flange Rod 3 x Flange Bearing 6 x Metal Steering Wheel 1 x Mechanical Arm 1 x beam 1 x different U-shaped stand. 2 x L-shaped stand 2 x Long U Bracket 4 x Multi-function holder
