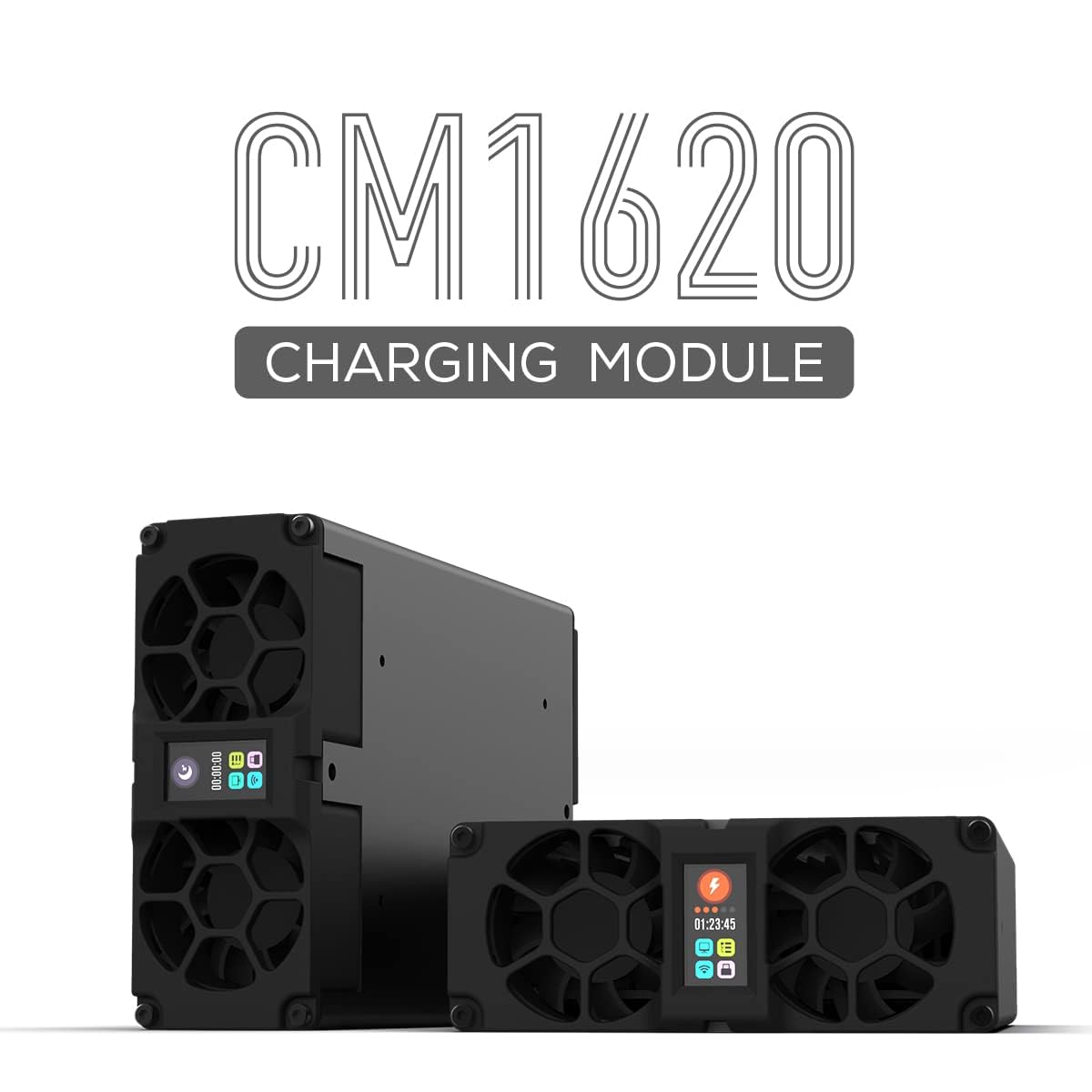

CM1620 1100W 20A Lipo Battery Charger Charging Module for Rc Models 2-16S Life/LiPo/LiHv Battery ect

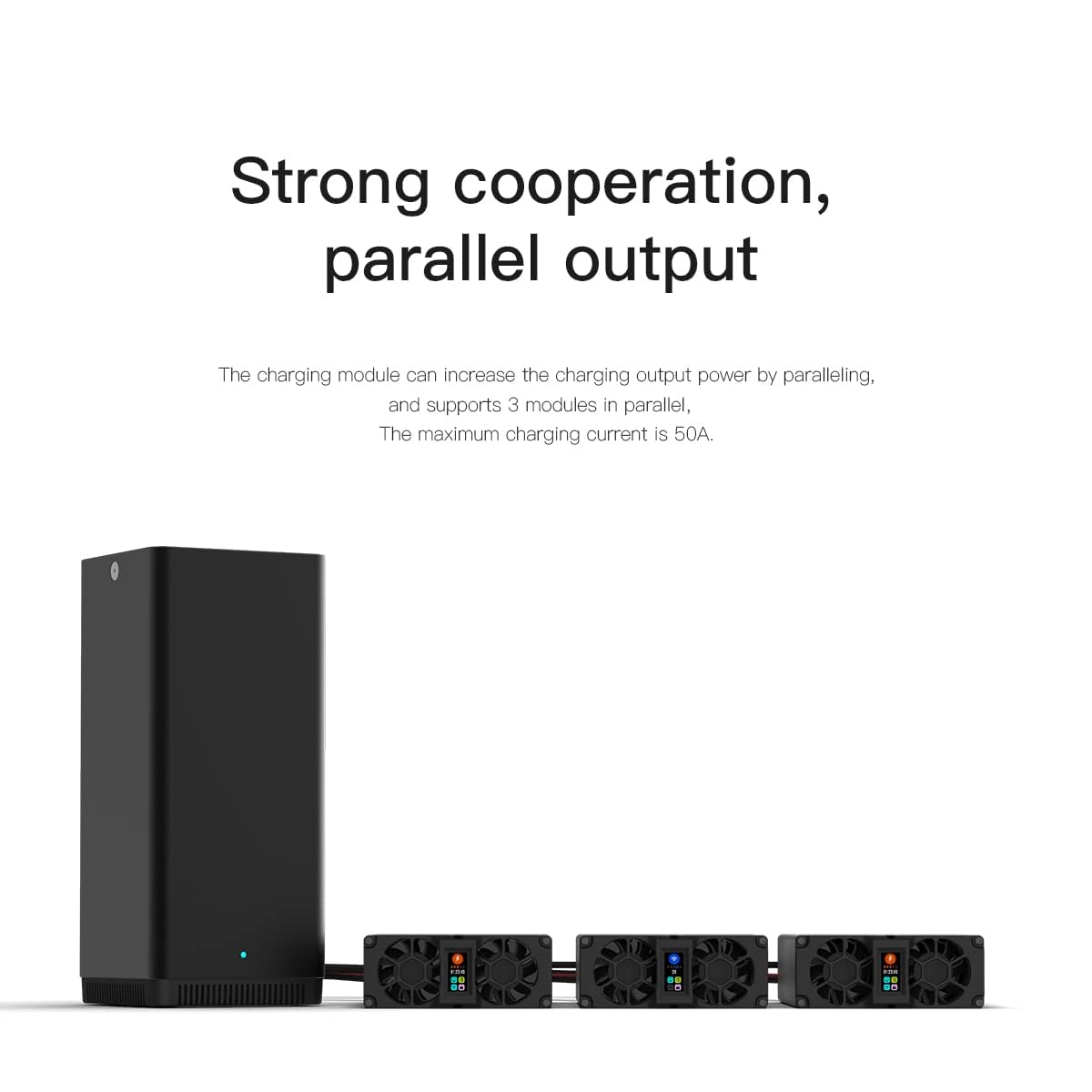

• 【Strong cooperation, parallel output】-The charging module can increase the charging output power by paralleling, and supports 3 modules in parallel，The maximum charging current is 50A.

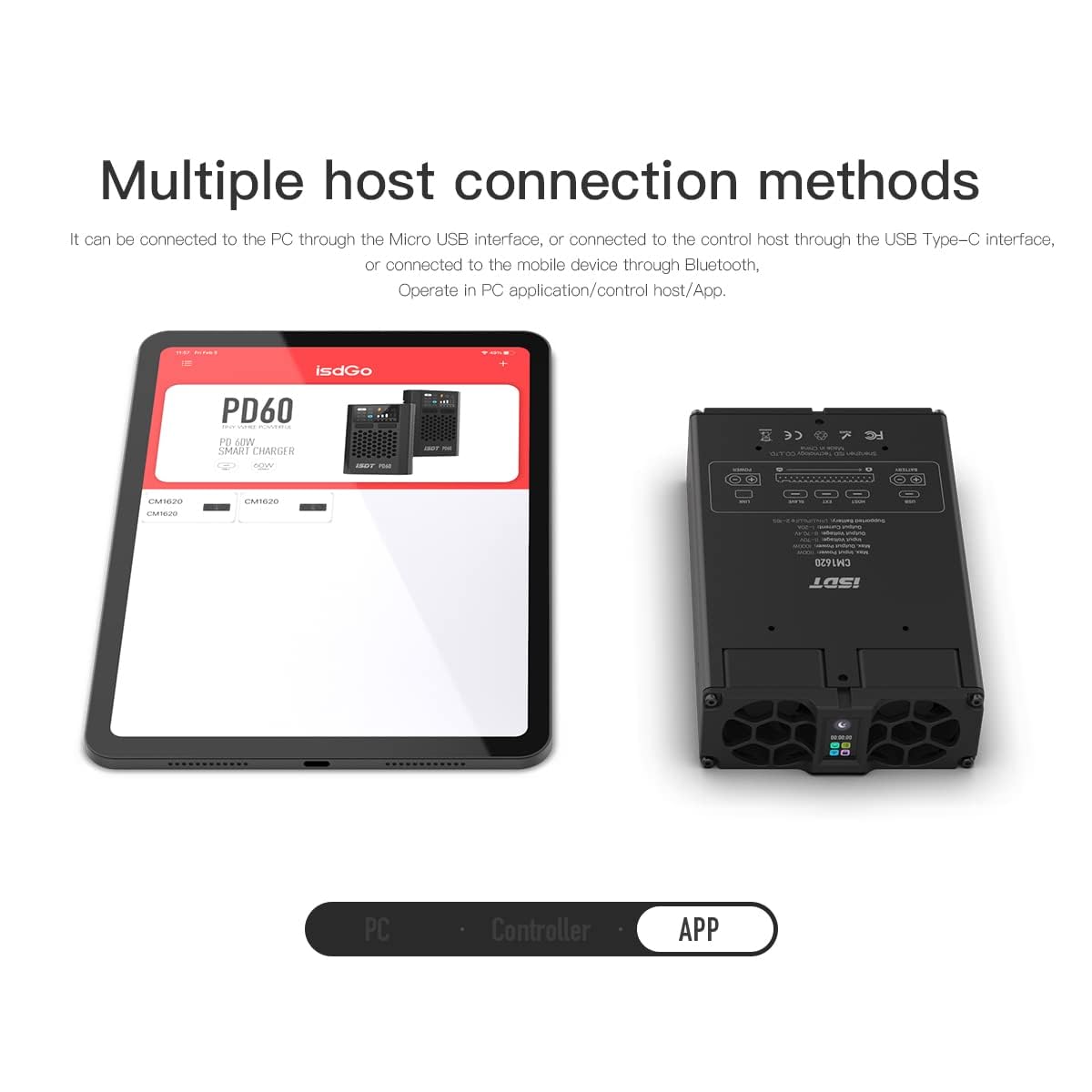

• 【Multiple host connection methods】-It can be connected to the PC through the Micro USB interface, or connected to the control host through the USB Type-C interface,or connected to the mobile device through Bluetooth,Operate in PC application/control host/App.

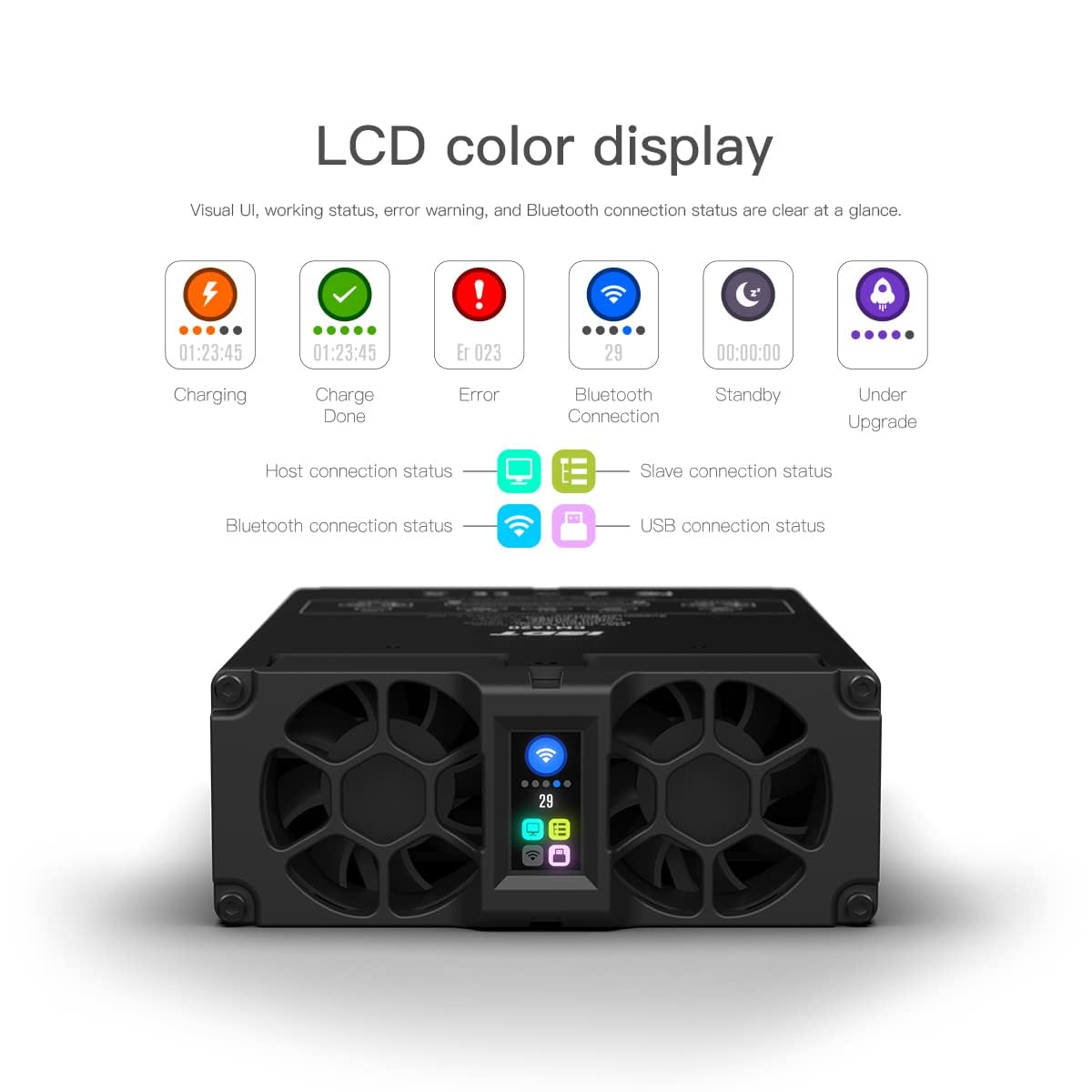

• 【LCD color display】-Visual UI, working status, error warning, and Bluetooth connection status are clear at a glan

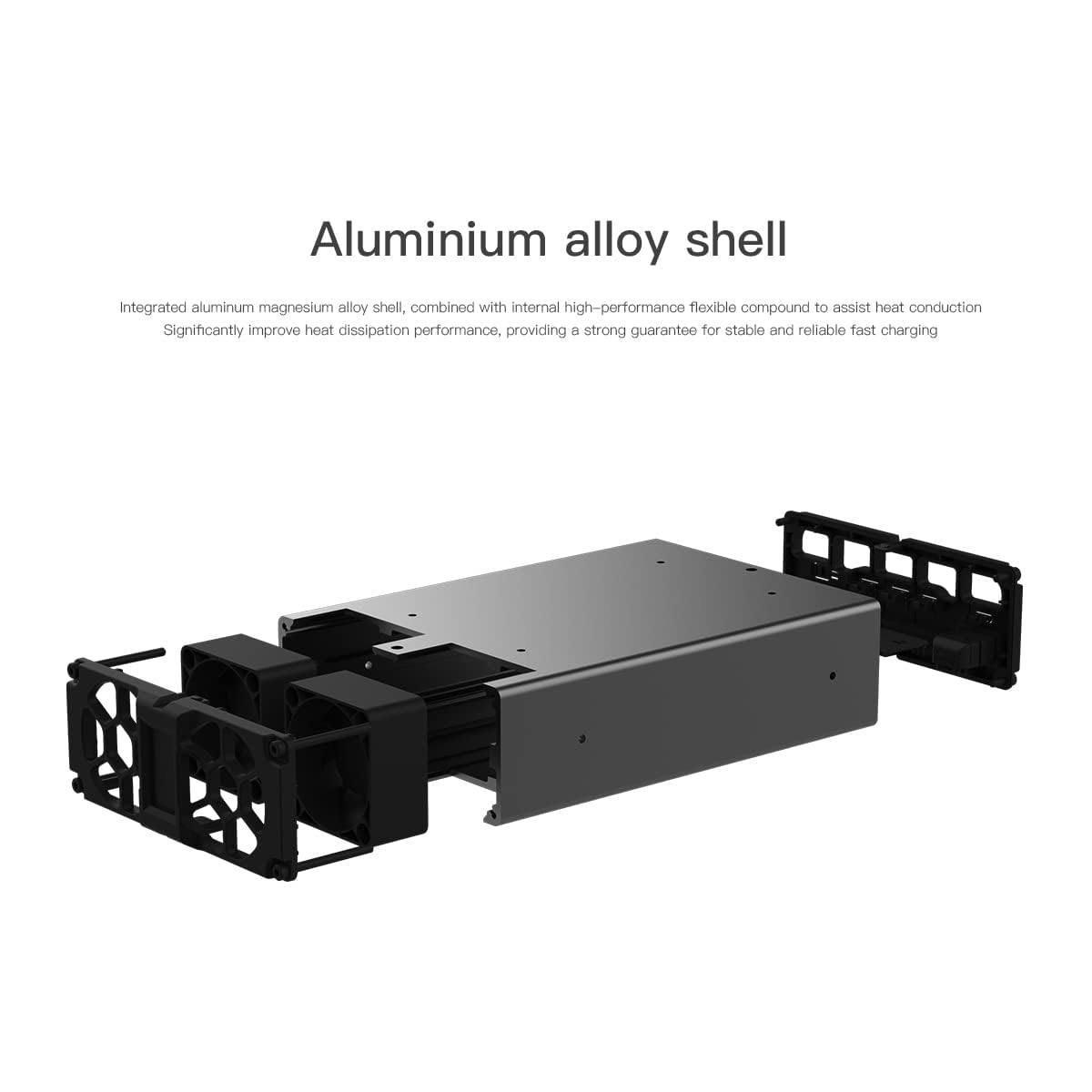

• 【Aluminium alloy shell】-Integrated aluminum magnesium alloy shell, combined with internal high-performance flexible compound to assist heat conduction,Significantly improve heat dissipation performance, providing a strong guarantee for stable and reliable fast charging.

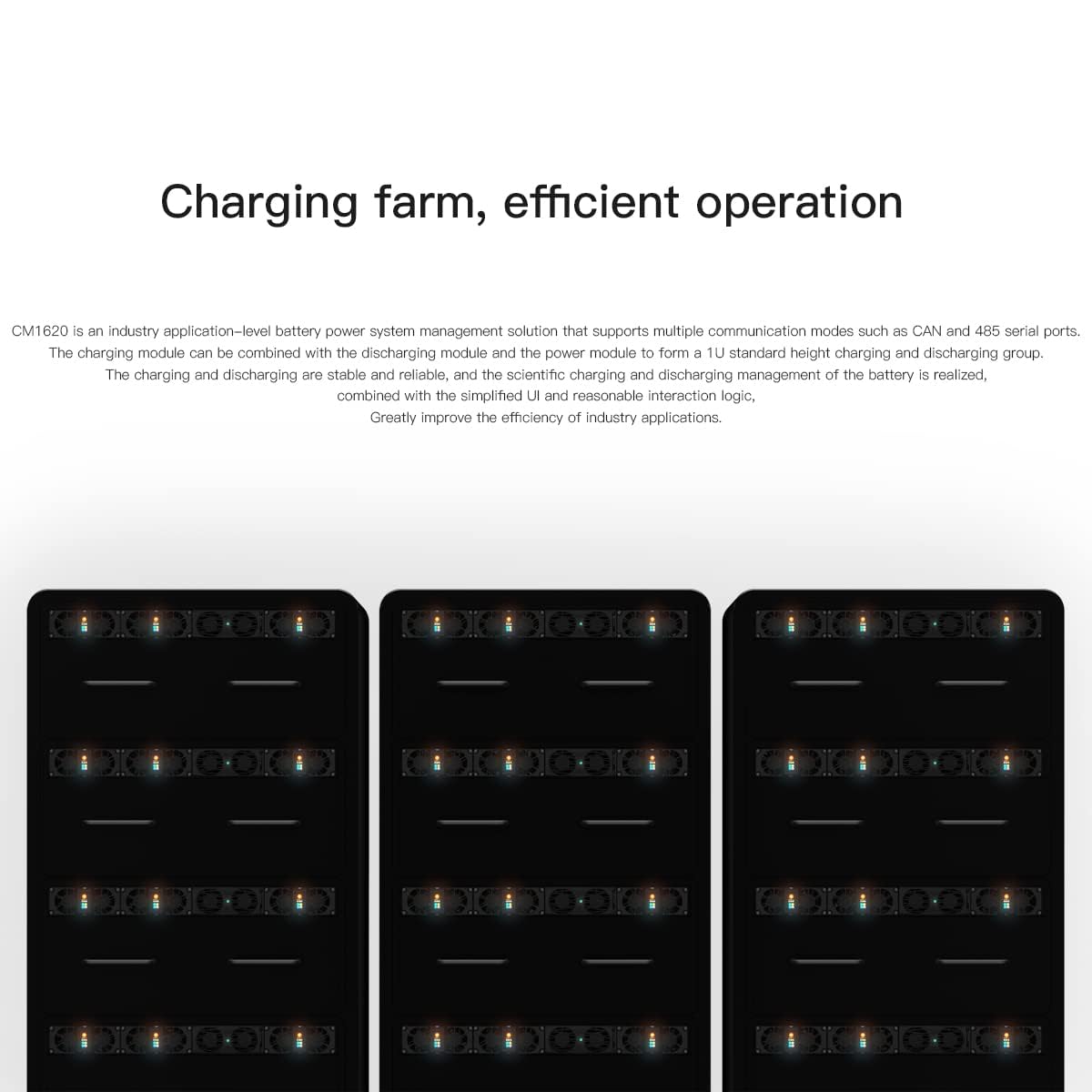

• 【Charging farm, efficient operation】-CM1620 is an industry application-level battery power system management solution that supports multiple communication modes such as CAN and 485 serial ports.The charging module can be combined with the discharging module and the power module to form a 1U standard height charging and discharging group.

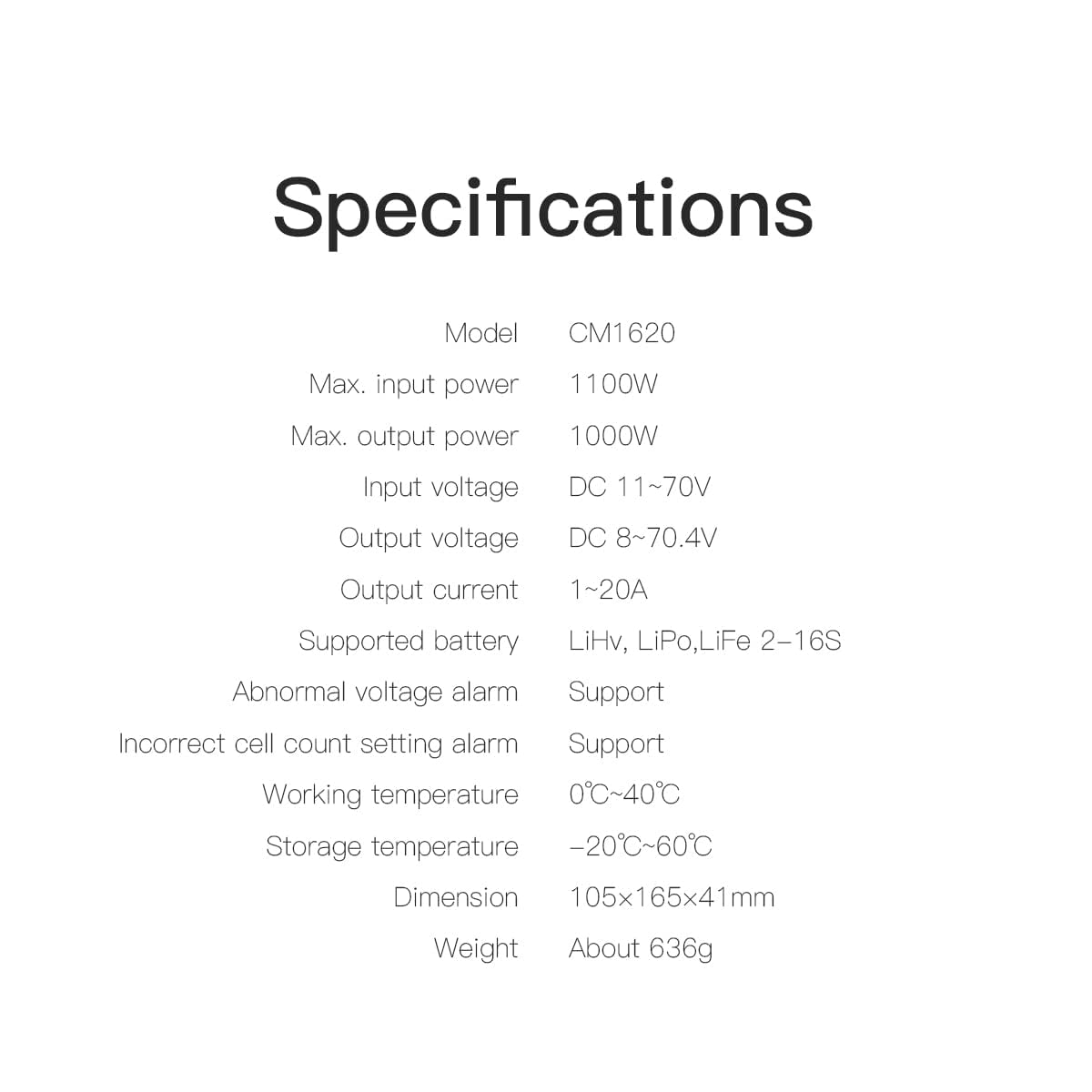

Specification: Model: CM1620 Max. input power: 1100W Max. output power: 1000W Input voltage: DC 11~70V Output voltage: DC 8~70.4V Output current: 1~20A Supported battery types and cell count: LiHv, LiPo,LiFe 2-16S Abnormal voltage alarm: Support Incorrect cell count setting alarm: Support Working temperature: 0℃~40℃ Storage temperature: -20℃~60℃ Dimension: 105×165×41mm Weight: About 636g Packing Included: 1XISDT CM1620 Charging Module
