OSOYOO Advanced Mecanum Wheel Robot Platform for Raspberry Pi 5/4/3 with Encoder Motor, 16-Channel PWM Driver, Dual Battery System High Power, Robotics car Kit for AI Projects (Pi Board Not Included)

• 【DESIGNED FOR RASPBERRY PI – POWERFUL ROBOTICS PLATFORM】 Built specifically for Raspberry Pi users, this advanced robotics platform supports for Raspberry Pi 2, 3, 4, and 5 (board not included). Unlike basic robot kits, it provides a real development environment for Python programming, Linux-based control, and AI robotics applications. Ideal for developers, students, and engineers who want to build intelligent robotic systems rather than simple remote-controlled cars.
• 【16-CHANNEL PWM DRIVER FOR ADVANCED CONTROL】 Equipped with a 16-channel PWM expansion board, this robot supports precise control of multiple servos and actuators simultaneously. Perfect for building complex robotic systems such as robotic arms, camera gimbals, or multi-sensor platforms. This feature greatly expands the project possibilities compared to standard robot car kits with limited IO capability.

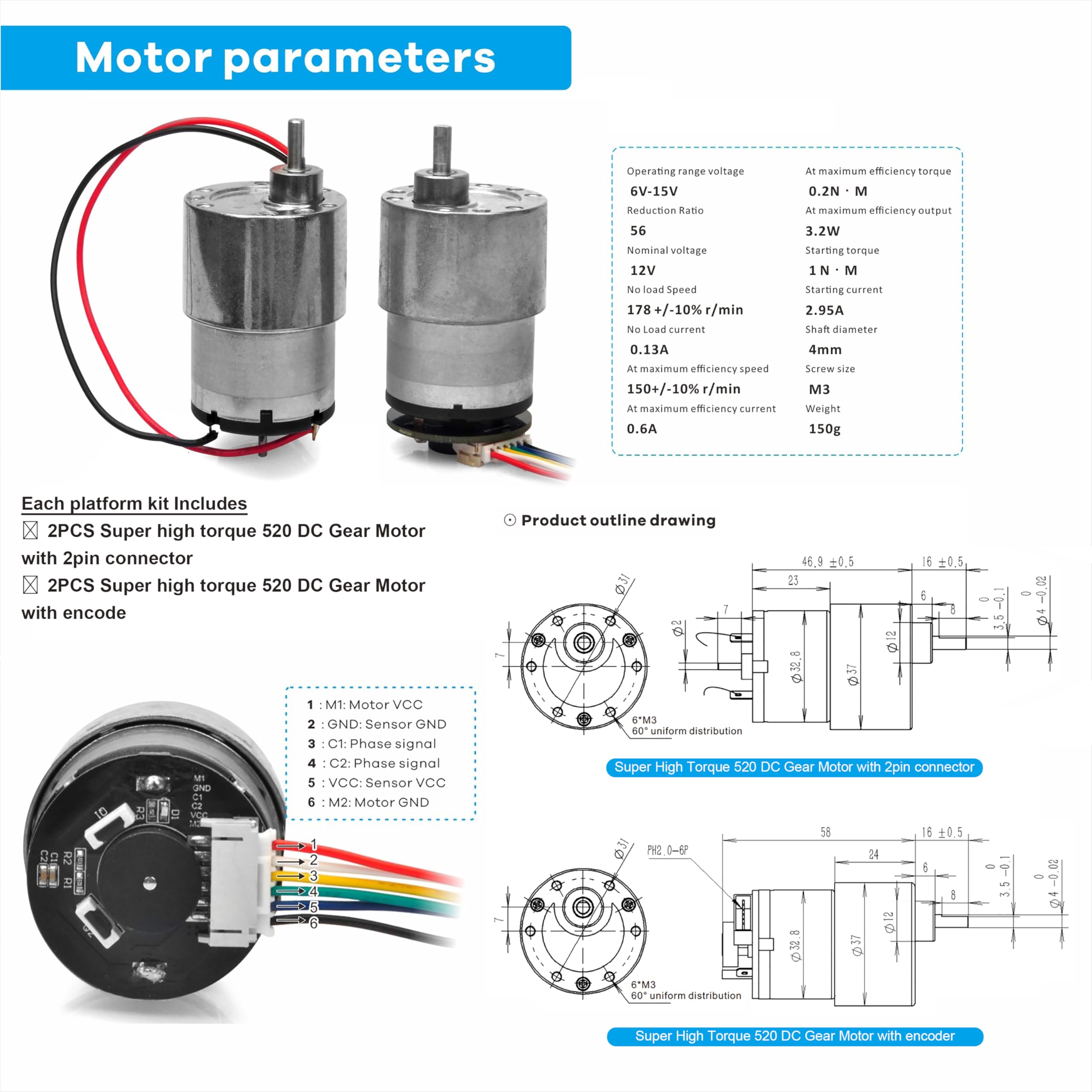

• 【HIGH-PERFORMANCE ENCODER MOTORS (520 SERIES)】 Powered by upgraded 520 DC gear motors with built-in encoders (includes 2pcs motors with encoder and 2pcs motors without encoders), the platform supports closed-loop speed control for accurate movement and synchronization. Compared to standard low-cost motors, this system provides stronger torque, better stability, and precise motion feedback—ideal for robotics research, PID control experiments, and engineering applications.

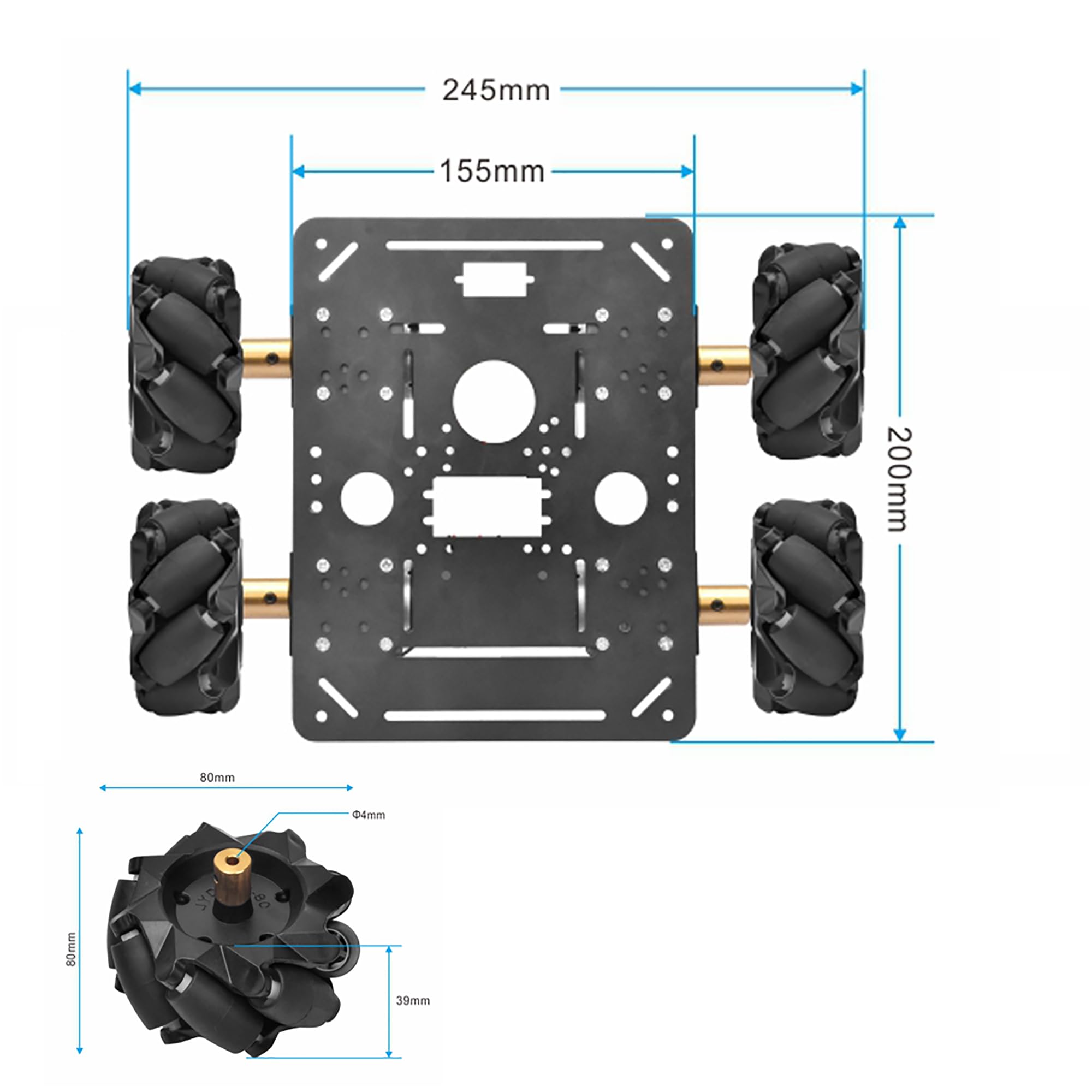

• 【OMNIDIRECTIONAL MECANUM MOVEMENT】 Featuring high-quality mecanum wheels, the robot can move freely in all directions—forward, backward, sideways, and diagonally. This advanced motion system is widely used in professional robotics and provides hands-on experience with real-world kinematics and motion algorithms.
• 【HIGH POWER DUAL BATTERY SYSTEM (OPTIMIZED FOR PI 5)】Specially designed for the higher power demands of Raspberry Pi 5, this kit includes dual battery holders and dual battery packs to ensure stable power supply. This prevents voltage drops and system instability during intensive tasks such as video processing, AI computing, and WiFi communication.

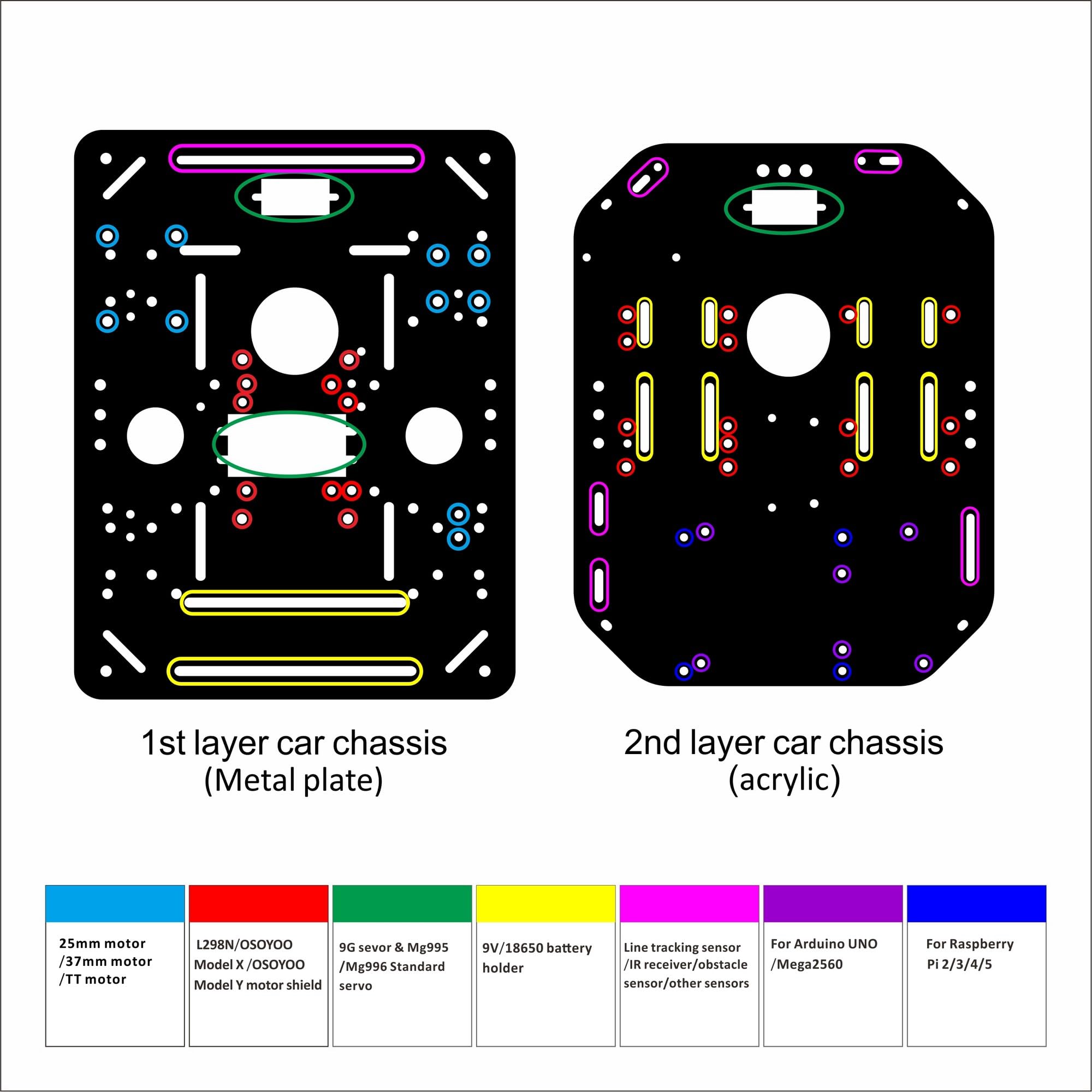

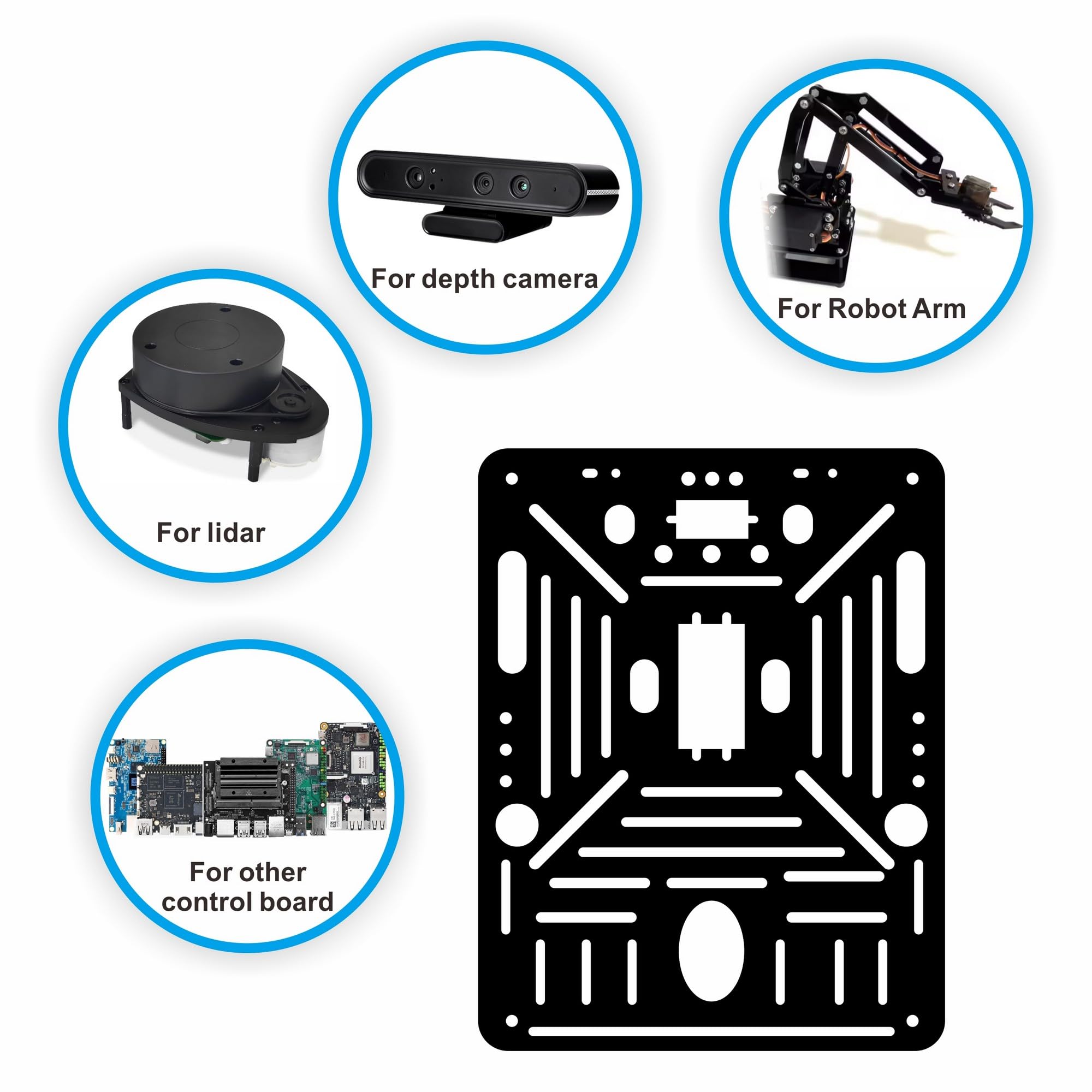

• 【FULLY MODULAR & EXPANDABLE ROBOT CHASSIS】The flexible and open chassis design allows easy integration of cameras, sensors, robotic arms, and AI modules. Whether you are building a smart surveillance robot, autonomous navigation system, or AI-powered project, this platform grows with your ideas—making it suitable for long-term learning, research, and development.

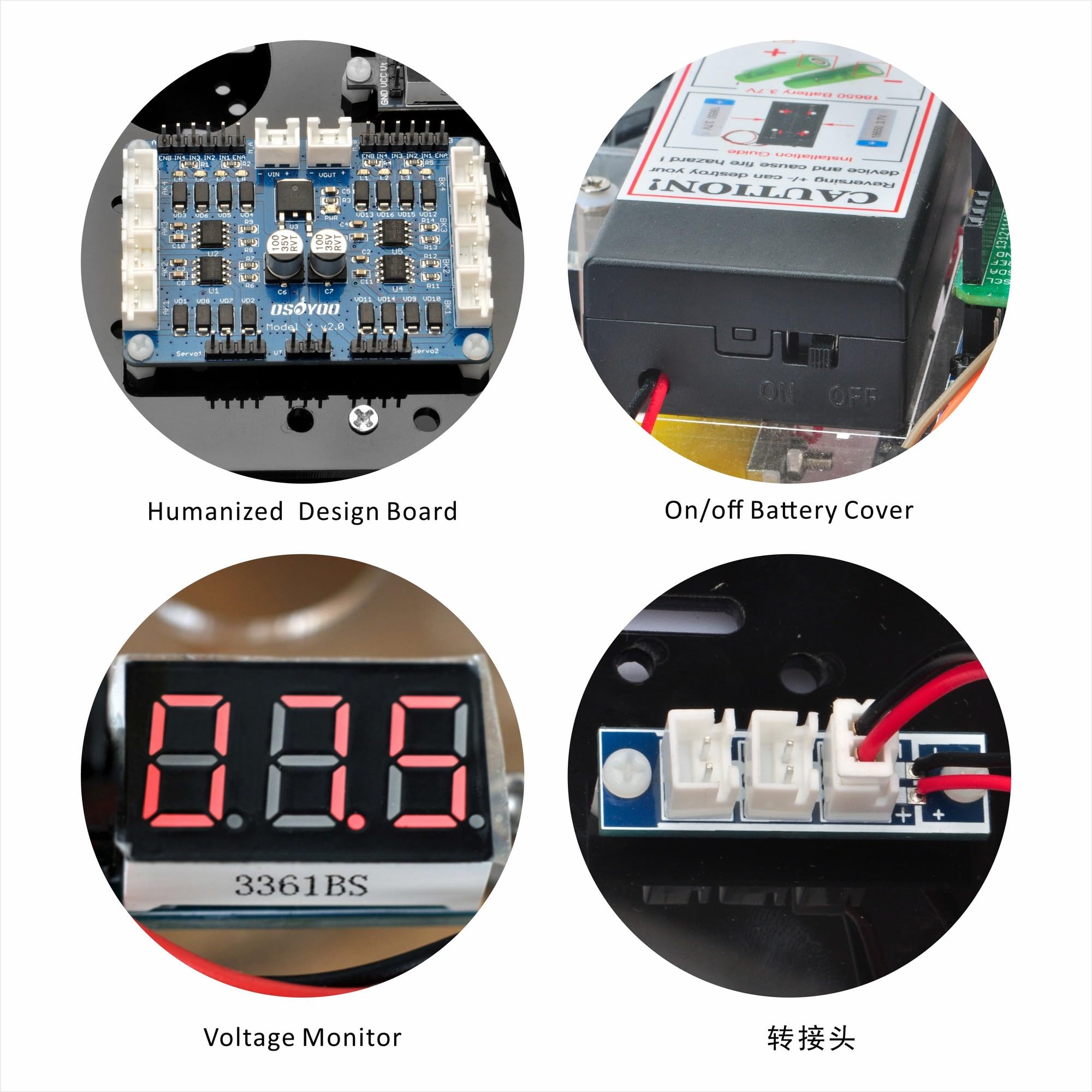

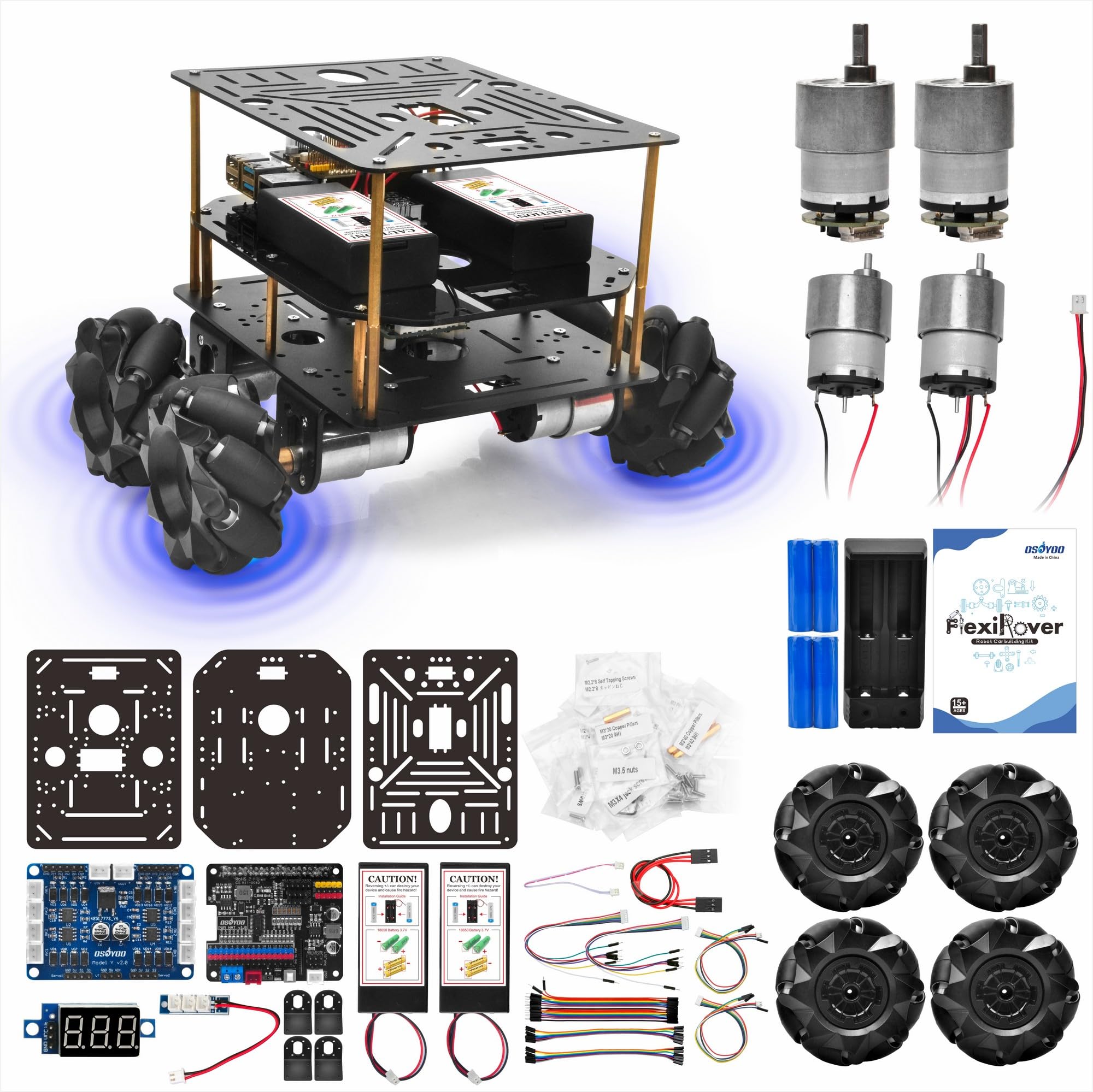

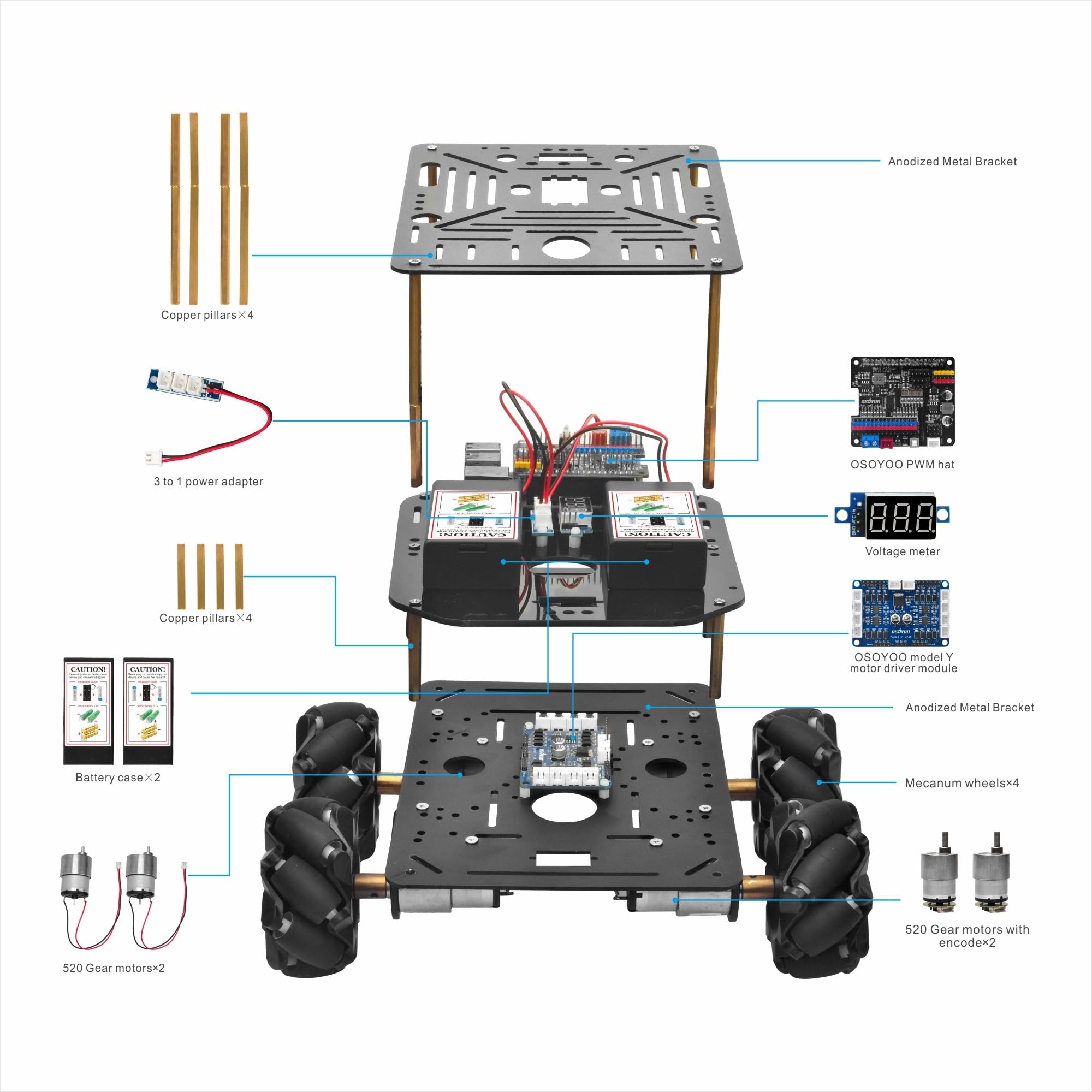

• 【Package set】 3 layers car chassis, OSOYOO PWM hat shield, OSOYOO model Y motor driver module, 2pcs 520 Gear motor, 2pcs 520 Gear motor with encode, Mecanum Wheel, Battery case, Voltage meter, 3 to 1 voltage manager module, Battery and Battery charger, Screw and nut package and all needed jumper cables

Reversing +/- when connecting modules with board
