Radiolink M10N TS100 GPS Compass Module High Positioning Precision for DIY Flight Controller RC Drone FPV, Compatible with Radiolink Mini Pix/Crossflight

★★★★★

$39.99

Quantity

Worldwide shipping

Fast tracked delivery

30-day returns

Hassle-free returns

Secure checkout

Safe & protected

Great service

Thousands of happy customers

About this item

High Positioning Accuracy: With about of 50 centimeters positioning, it can search 20 satellites within a few seconds at the open ground.
De-interference and Anti-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference. In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter. Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

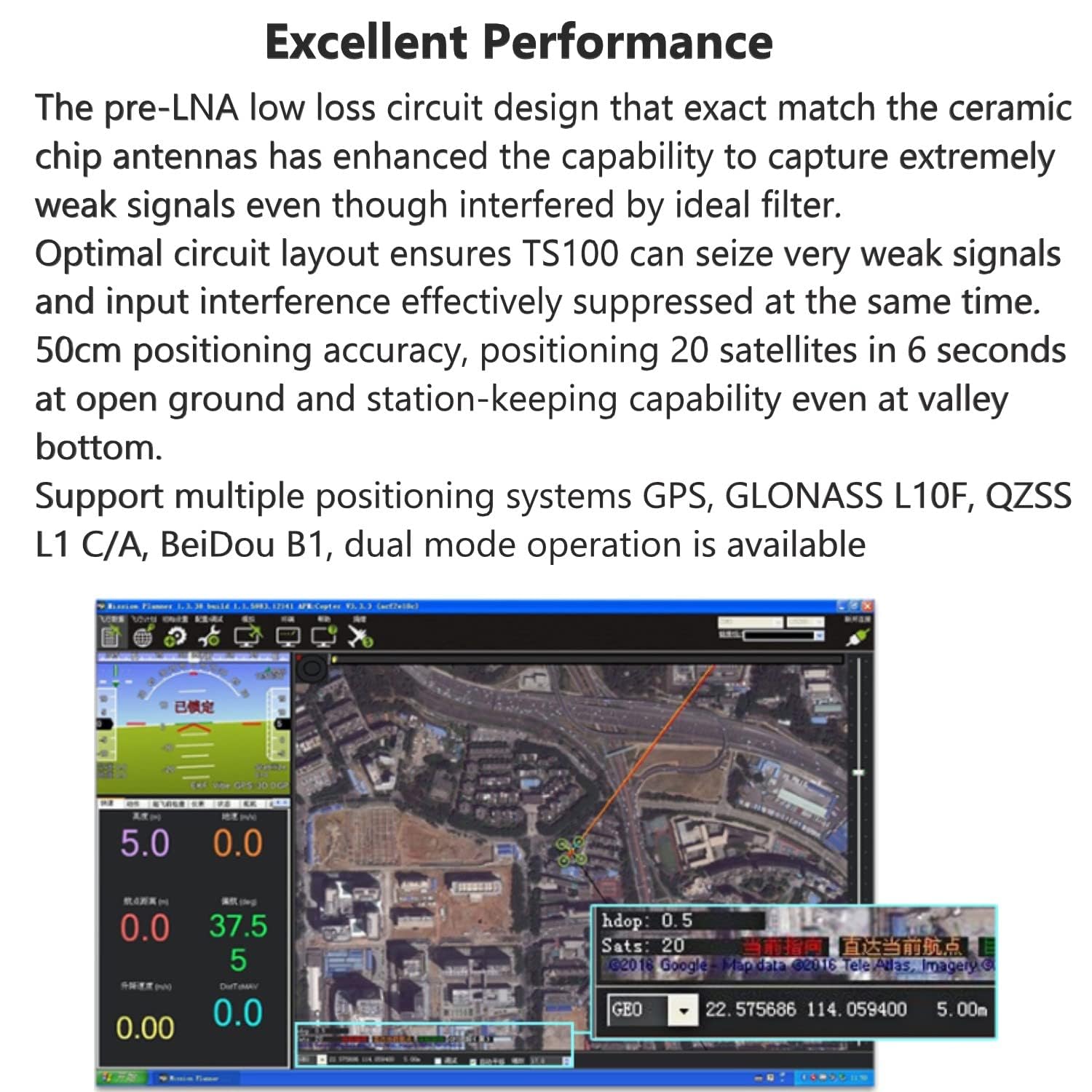

Excellent Performance: 50 centimeters positioning accuracy, positioning 20 satellites in 6 seconds at open ground, and station-keeping capability even at the valley bottom. Support multiple positioning systems GPS, GLONASS L10F, QZSS L1 C/A, BeiDou B1, the dual-mode operation is available
Top Configuration: GPS decoder chip: Radiolink TS100, with Ublox M10050, is much better than a single GNSS 7N. Built-in high-precision electronic compass IST8310(I2C port). Antenna: 2.5dbI high gain and selectivity ceramic chip antennas. Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.

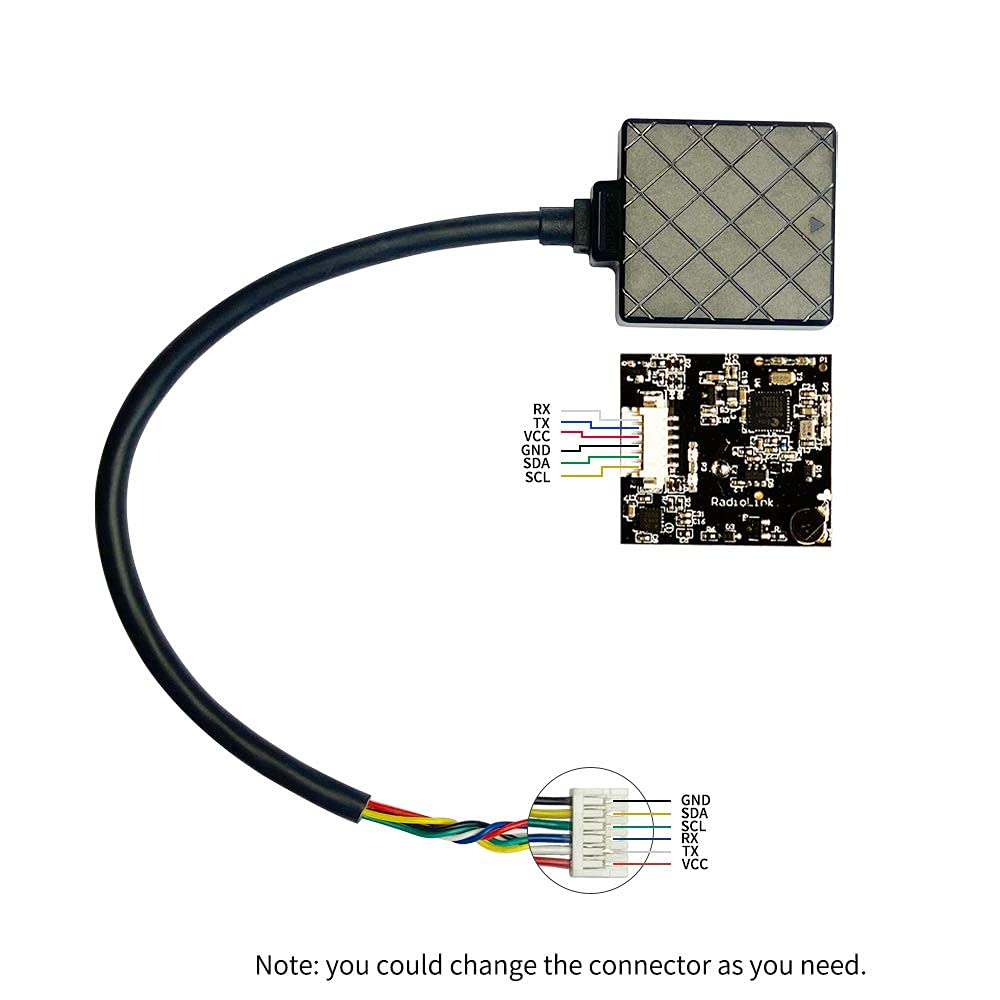

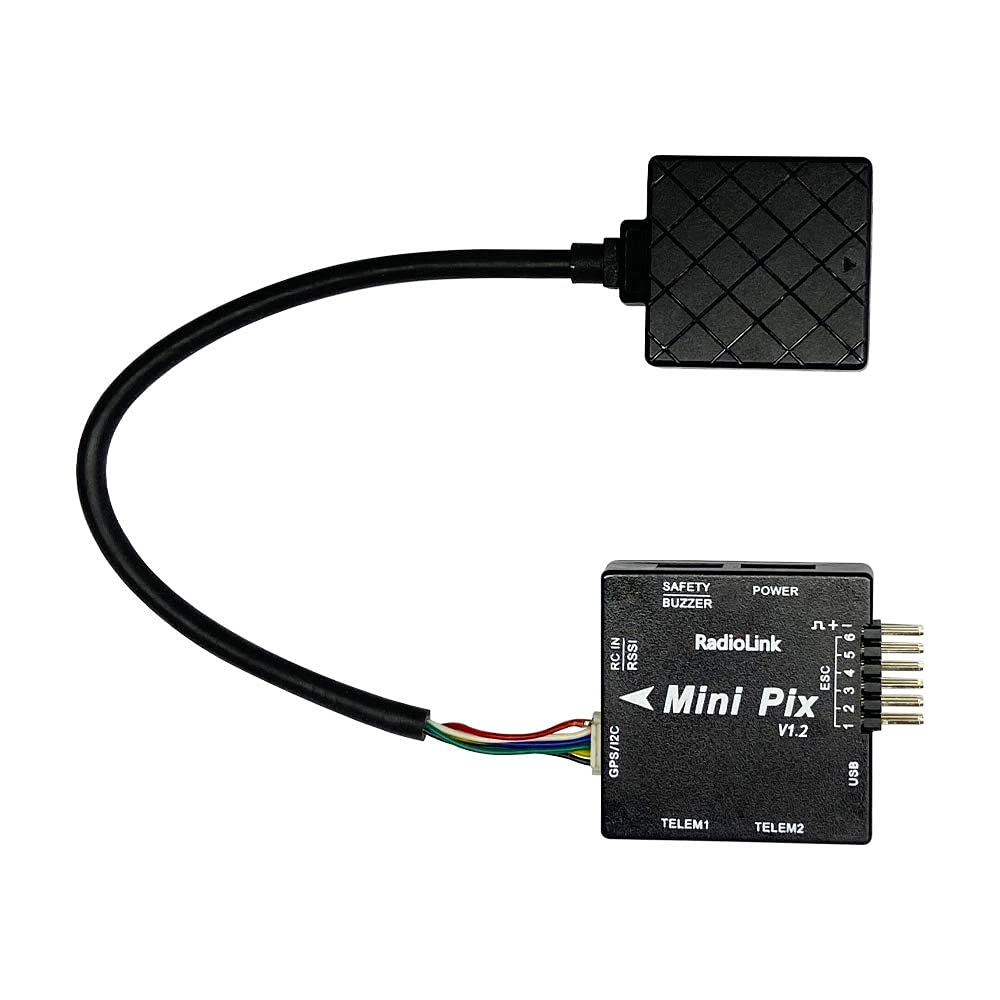

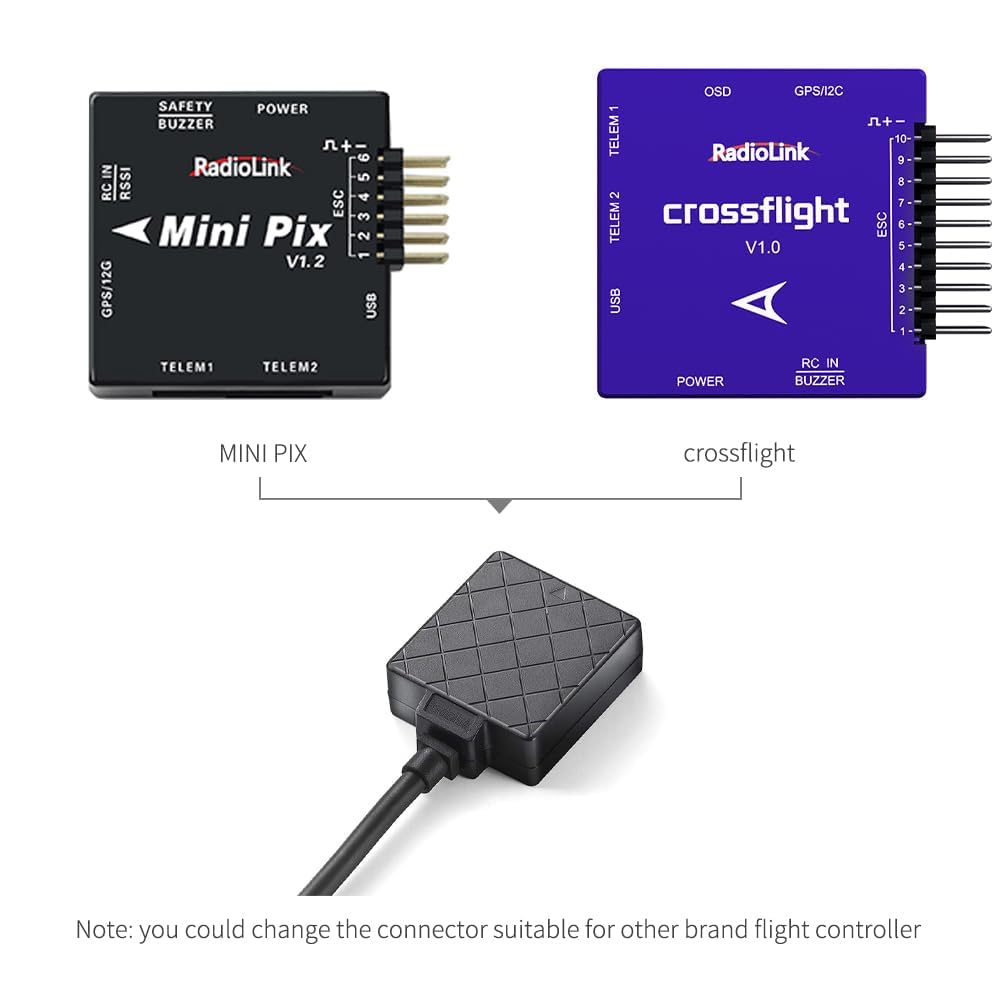

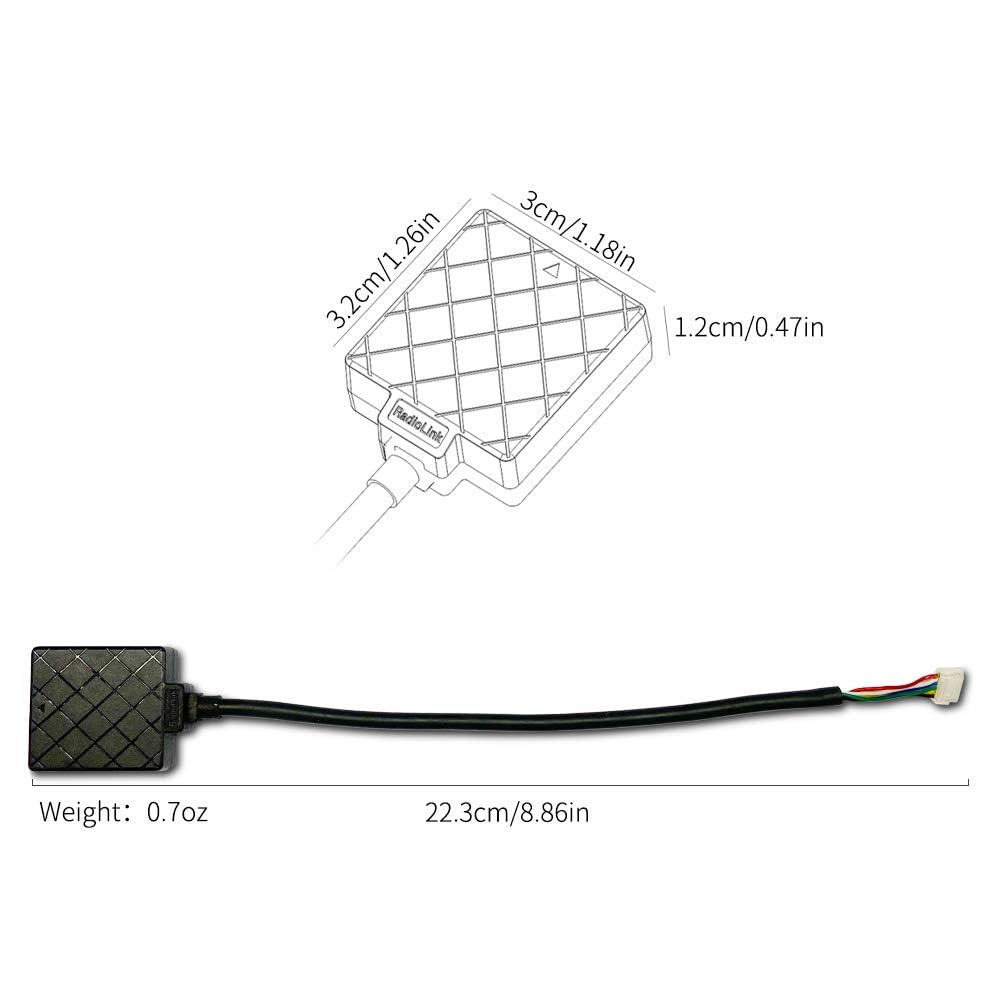

Super Mini Size: only 1.26*1.18*0.47", 20g(0.71oz), 6pin connector compatible with Radiolink mini pix, crossflight flight controller, the connector can be changed for other brand flight controller.

Product details

Brand

Radiolink

Manufacturer

Radiolink

Size

Medium

Weight

-0.00 kg

Model number

XIEWANJUYI-769
