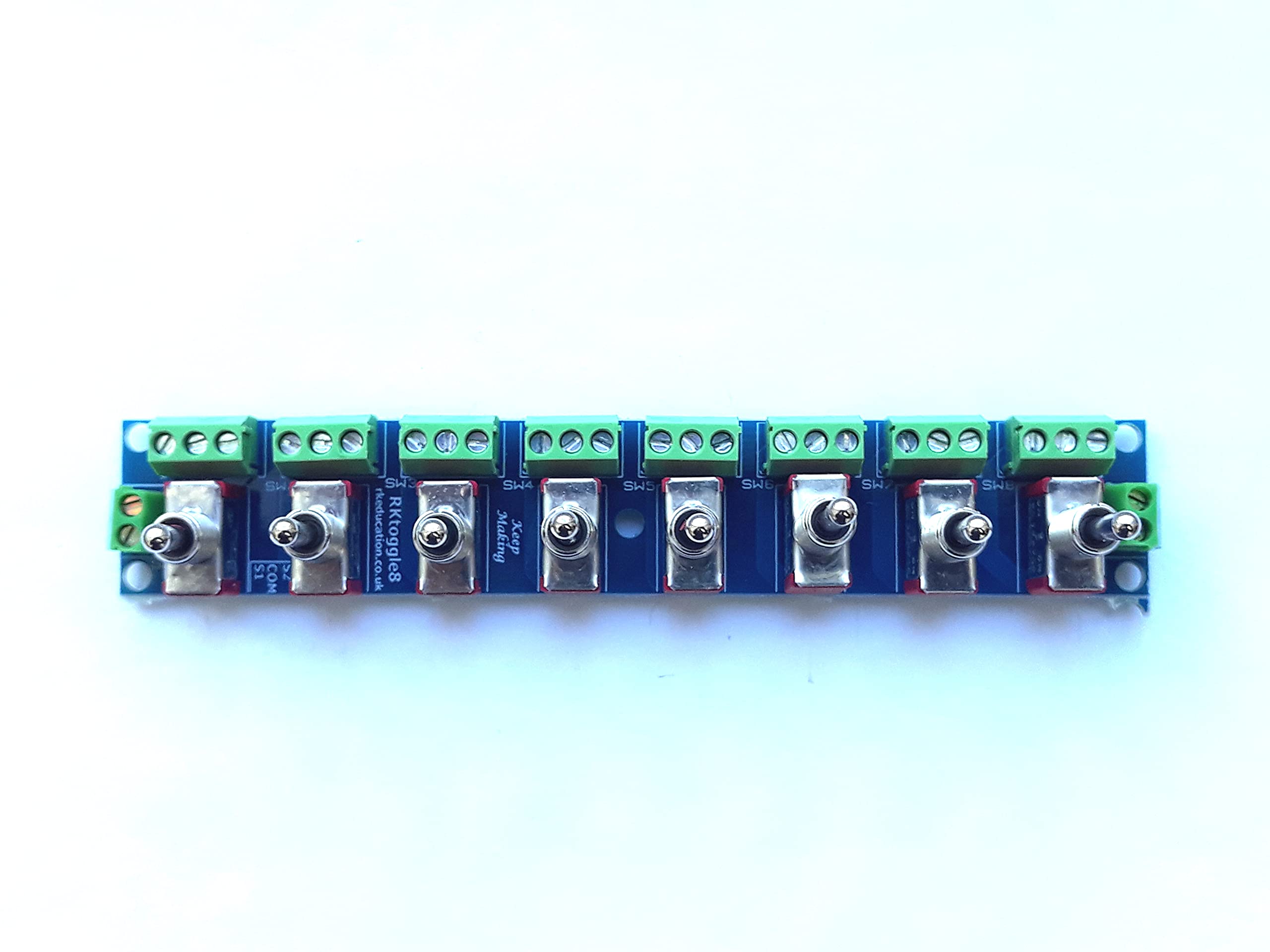

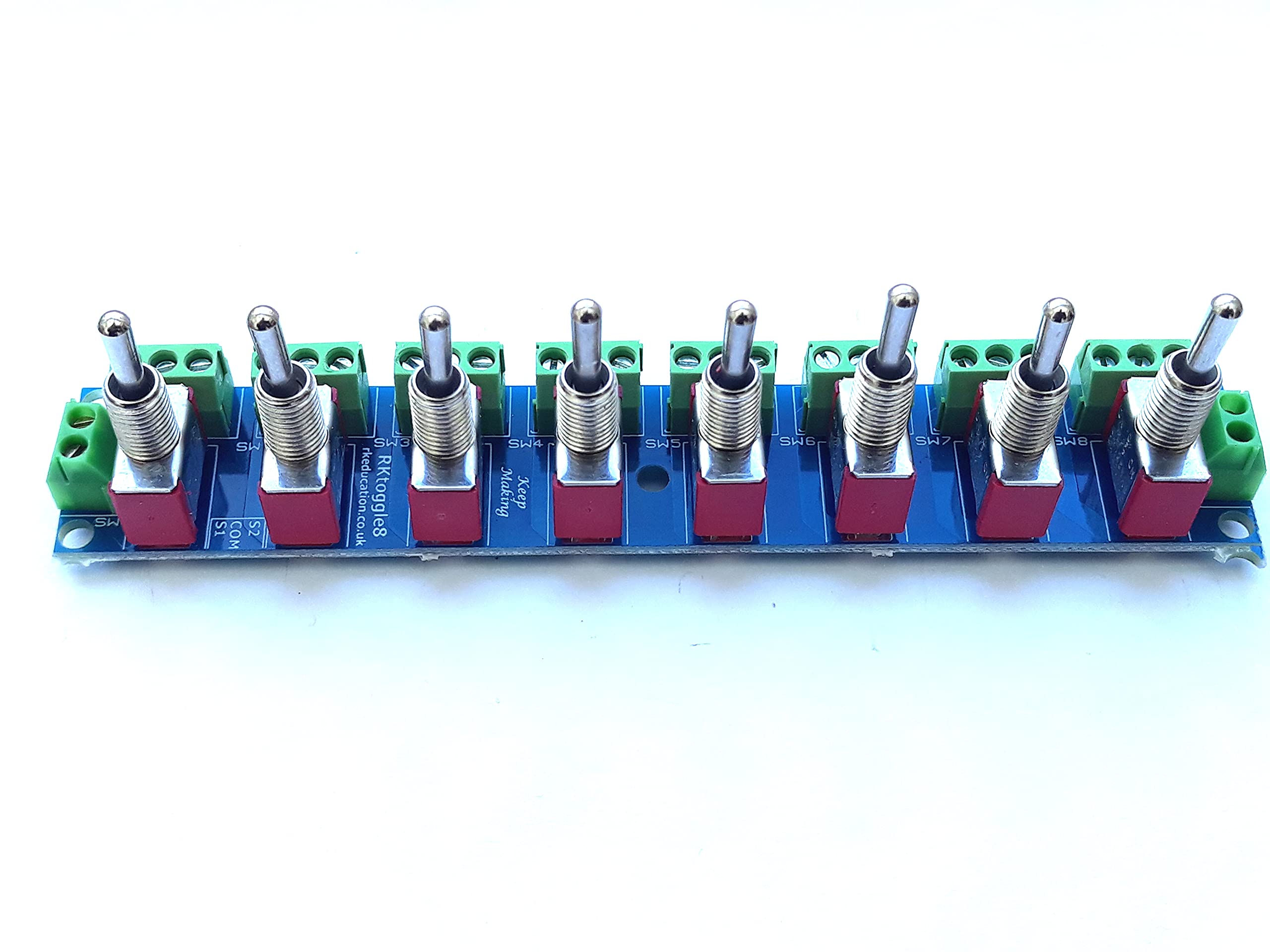

RKtoggle8 Toggle Switch Module for Switching Solenoid Points for use with CDU - Designed for Hornby, Seep, PECO, Bachmann layouts - Constructed

• Designed to aid with point switching
• Perfect for train layouts
• For use with capacitor discharge units such as RKcdu2, RKcdu3
• High quality components and PCB
• Schematic and documentation available from www.rkonlinestore.co.uk

This module has been designed for use with solenoid points and capacitor discharge units. Power is supplied to the module via the 2 way terminal blocks, then power is outputted via the 3 way terminal blocks by switching the toggle switches. This has been designed to be used when switching solenoid points Provides power to 8x 3way, terminal blocks which are connected to solenoids The module can output power 8 solenoids Power to the output terminal blocks is controlled by 8 PCB mount toggle switches with momentary, off, momentary action Designed and manufactured in the UK Uses a high quality, professional, double sided PCB with silkscreen layer The PCB is compact - 120x22mm The PCB has 3mm mounting holes for PCB mounting pads. Ideal for controlling points
