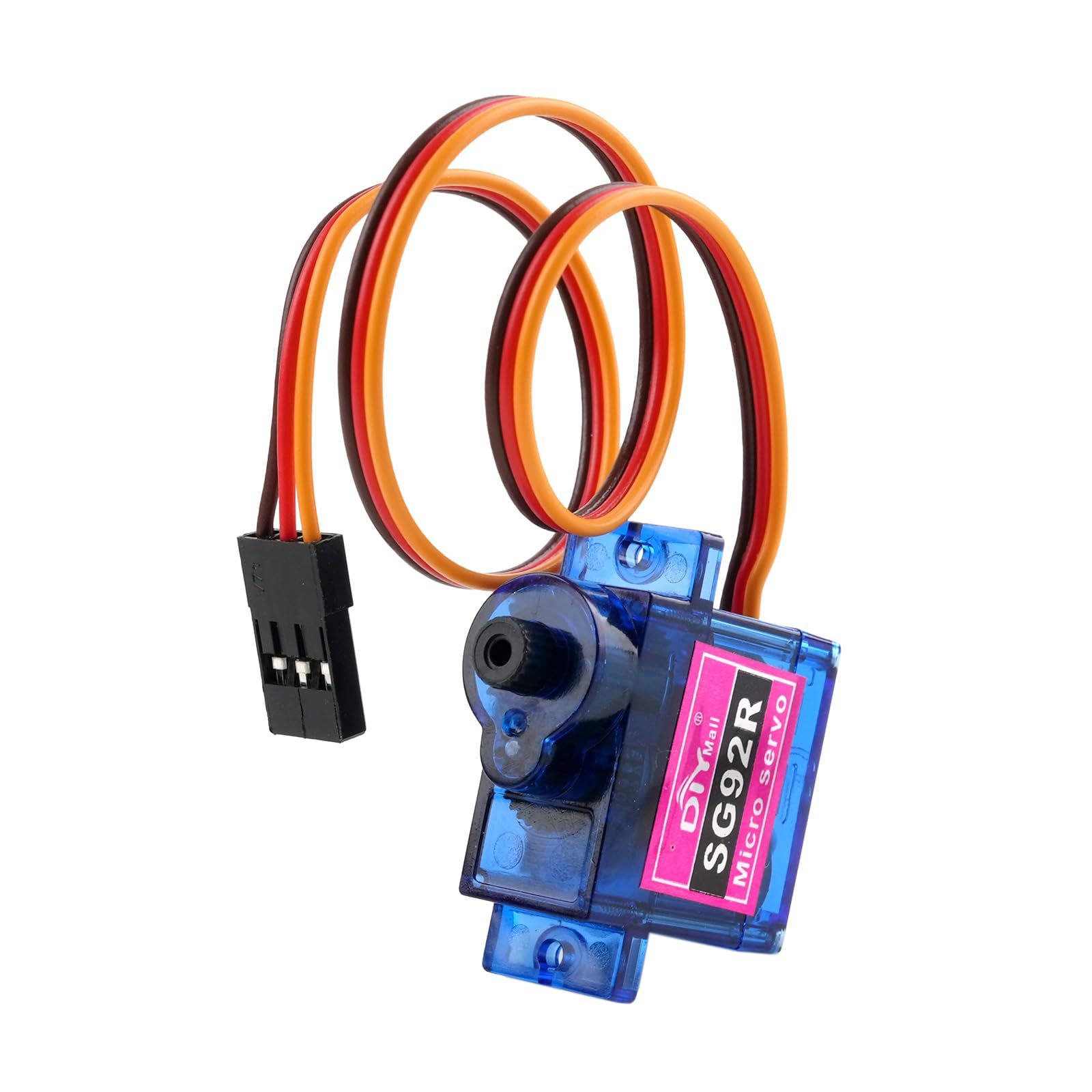

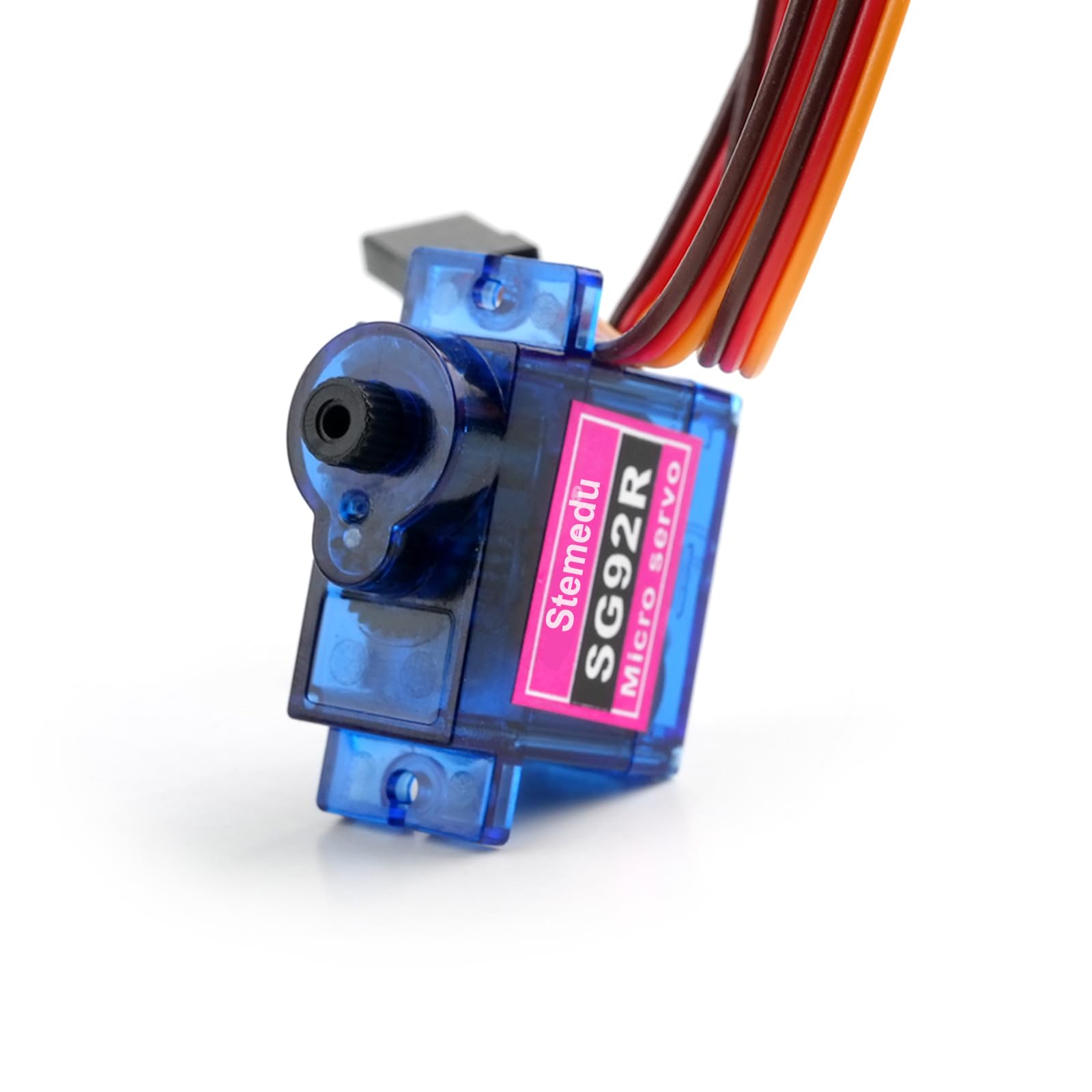

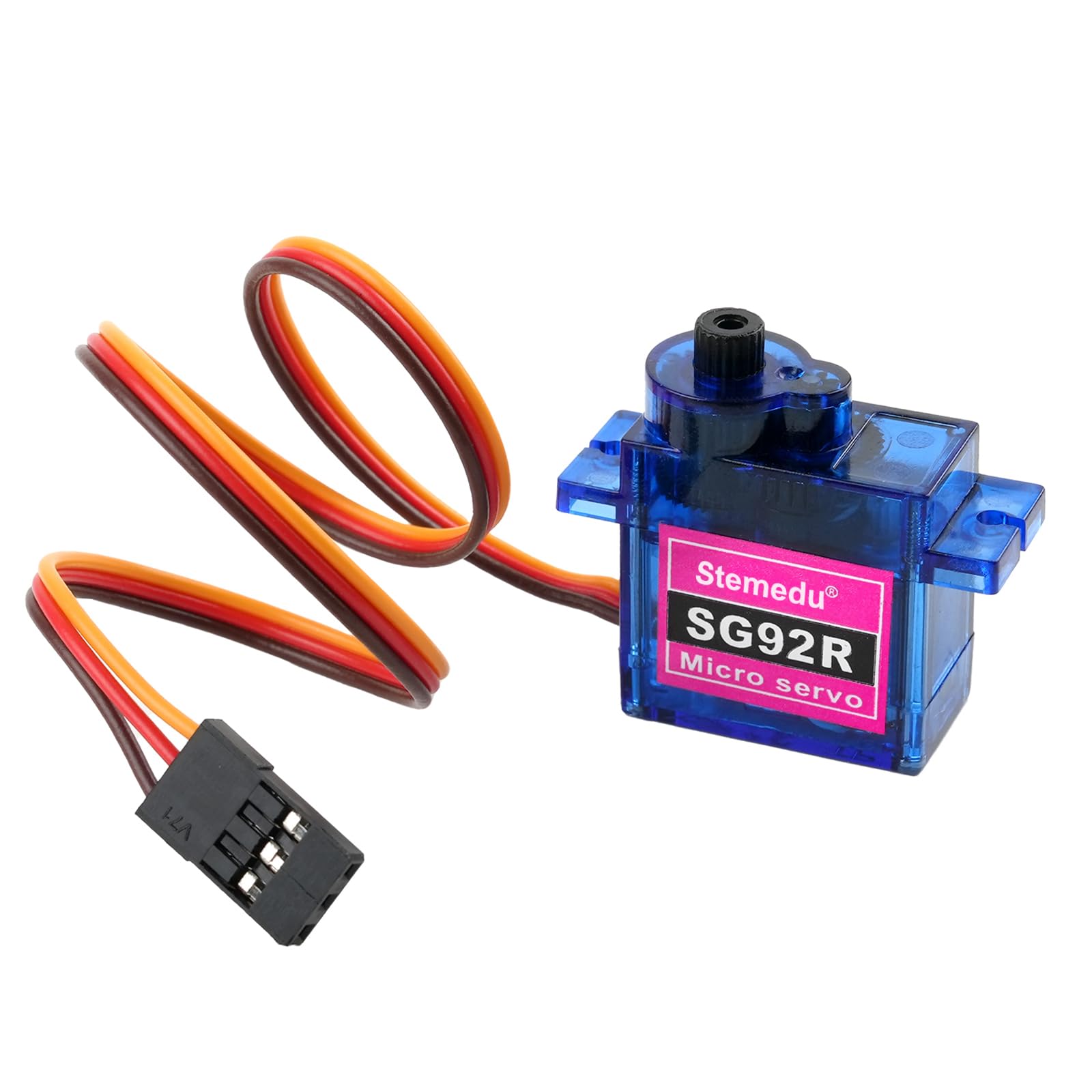

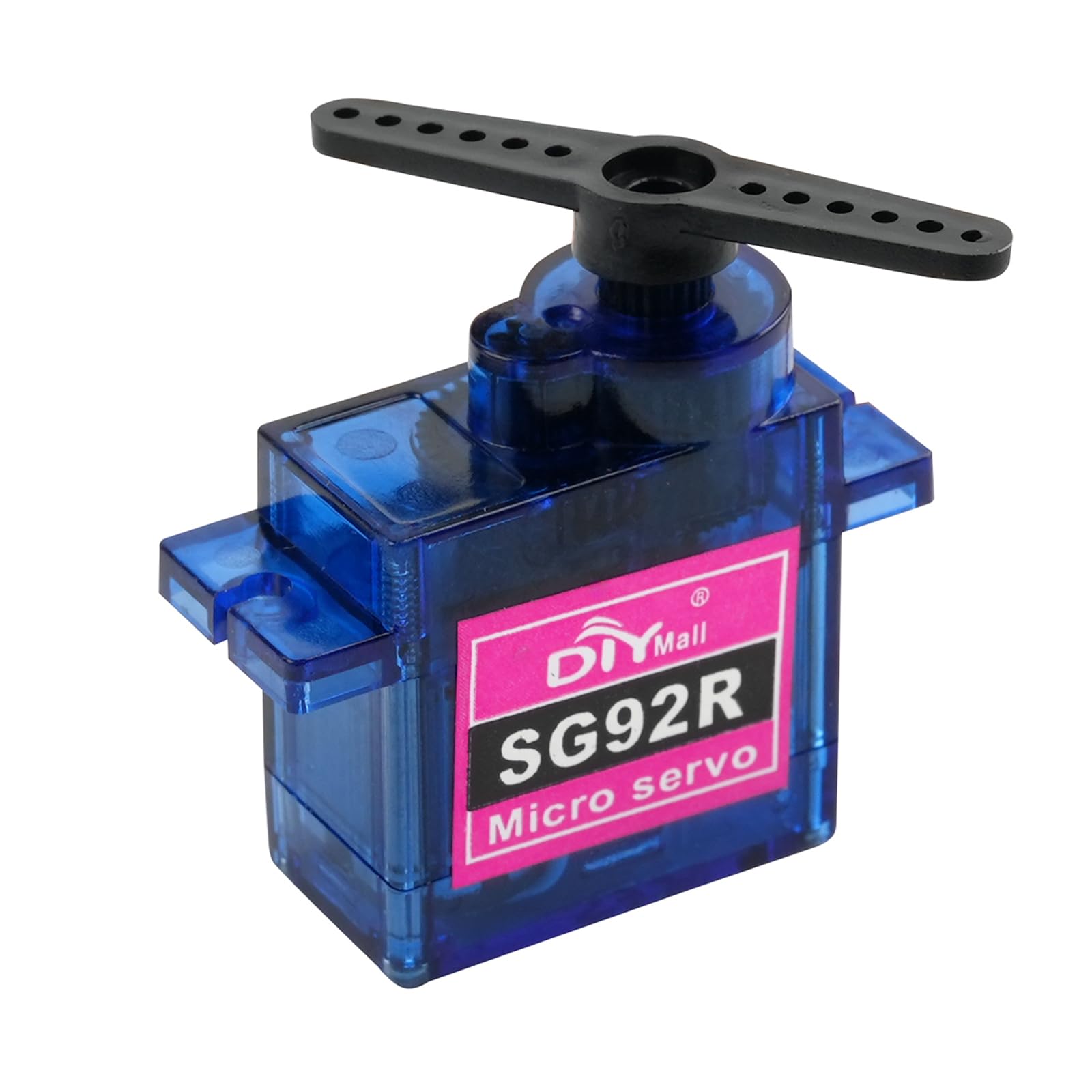

Stemedu 10PCS SG92R 9g Micro Servo Motor Mini Small Analog Servos Motor Metal Gear for Arduino RC Model Car Airplane Robot (Controlled Angle 180 Degree)

• SG92R 9G Servo - Stemedu 9g servo motor for remote control helicopters, micro robot, robot arm and boats. Fit for ALL kinds of R/C model and also make electronics DIY compatible with Arduino, Raspberry Pi
• Mini Servo - small servo motor compatible with JR and Futaba interface.
• Operating Voltage: 4.8V-6.0V. Micro servo running speed (at no load) : 0.10 sec/60° (4.8V), 0.08 sec/60° (6V). Stall Torque (4.8V): 1.3kg.cm (4.8V). 1.8kg.cm (6V). Running angle: 180 degree
• Wide Applications -Servos used for fixed-wing, helicopter, KT, glider, small robot, robotic arm and other models
• Note: The servo can achieve a maximum control angle of 180° within the 500 to 2500us frequency range, with a 90° control angle when operated by a transmitter

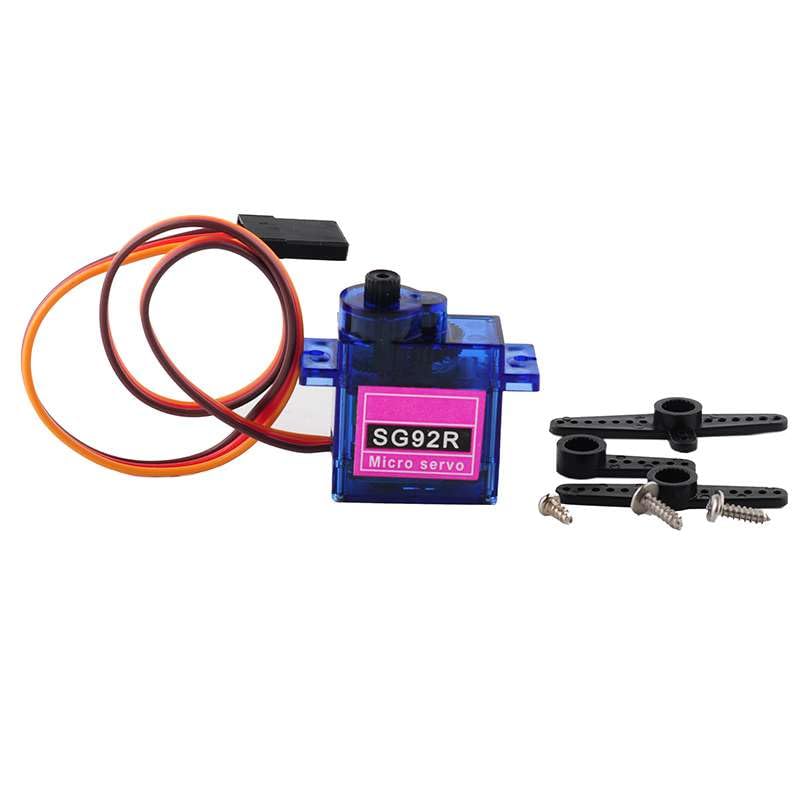

Description: Electrical Specification: Operat voltage: 4.8V - 6.0V Runnig current: 90mA No load speed: 0.10sec/60° (4.8V), 0.08sec/60° (6V) Peak stall torque: 1.3kg.cm (4.8V), 1.8kg.cm (6V) Stall current: 560mA±10% (4.8V), 750mA±10% (6V) Control Specification: Command signal: Pulse width modification Amplifier type: Analog controller Pulse width range: 500～2500usec Neutral position: 1500usec Running degree: 180°±3° (when 500～2500usec) Dead band width: 8 usec Rotating direction: Counterclockwise (when 1000～2000usec) Temperature Range: -25°C～70°C Humidity Range: 65%±10% Mechanical Specification: Gear type: 5 Plastic Limit angle: 200°±5° Bearing: NO Horn gear spline: 20T, Dia:4.9mm Horn type: Plastic, POM Case: Engineering plastics(PBT) Connector wire: 250mm±5mm Motor: Carbon brush motor Splash water resistance: No Size: 22.4*12.5*22.8mm (0.88*0.49*0.89 in) Weight: 10g±5% Package includes: 10 x SG92R 9g Micro Servo 10 x Servo Accessories
